0936273601

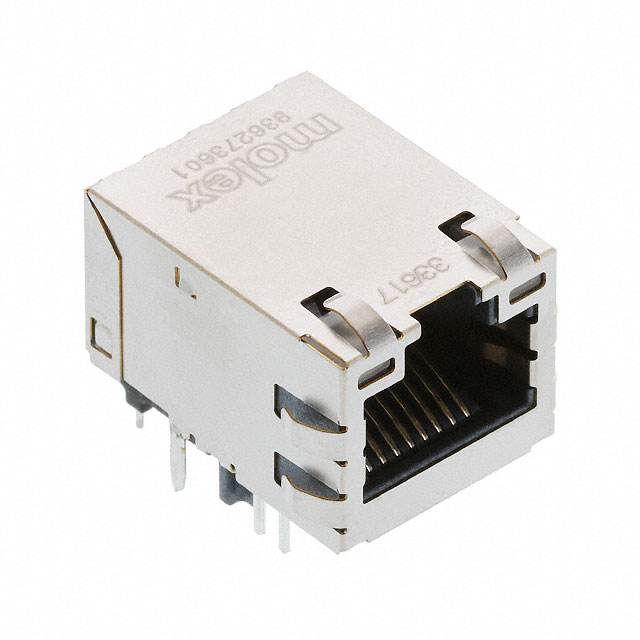

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0936273601 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0936273601 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0936273601 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN MAGJACK 1PORT 1000 BASE-T |
| Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 56 pcs | 112 pcs |
|---|---|---|---|---|---|
| $1.923 | $1.845 | $1.691 | $1.615 | $1.538 | |
| 280 pcs | 504 pcs | 1008 pcs | 2520 pcs | ||
| $1.345 | $1.307 | $1.115 | $1.038 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0936273601 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 1000 BASE-T | Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined |
| Quantity Available | 35202 pcs | Data sheet | MXMag Single Port RJ45 Datasheet934620001 Prod Spec0936273601 Drawing934620001 Pkg Spec |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | MXMag 93627 |
| Packaging | Tray | Other Names | 093627-3601 93627-3601 936273601 WM16799 |
| Orientation | 90° Angle (Right) | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 8 | Mounting Type | Panel Mount, Through Hole |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined |
| LED Color | Green - Green | Housing Material | Liquid Crystal Polymer (LCP) |
| Height Above Board | 0.555" (14.10mm) | Features | Board Guide |
| Detailed Description | 1 Port RJ45 Magjack Connector Panel Mount, Through Hole 10/100/1000 Base-T, AutoMDIX | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 2.00µin (0.051µm) | Contact Finish | Gold |
| Connector Type | RJ45 | Applications | 10/100/1000 Base-T, AutoMDIX |
