0908140814

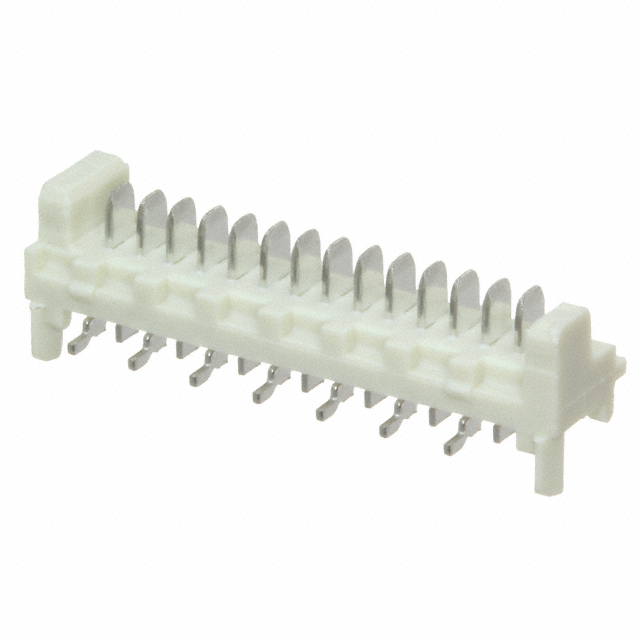

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0908140814 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0908140814 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0908140814 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | PICOFLEX SMT HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.371 | $0.328 | $0.308 | $0.296 | $0.283 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.257 | $0.231 | $0.206 | $0.186 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0908140814 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | PICOFLEX SMT HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 102440 pcs | Data sheet | Picoflex® Brochure99020-0011 Prod Spec90814-081490814-001 Pkg Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Picoflex PF-50 90814 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 090814-0814 0908140814-ND WM16288 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.161" (4.10mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 14 position 0.050" (1.27mm) |
| Current Rating | 1.2A | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Cartridge Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.085" (2.15mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
