0908140012

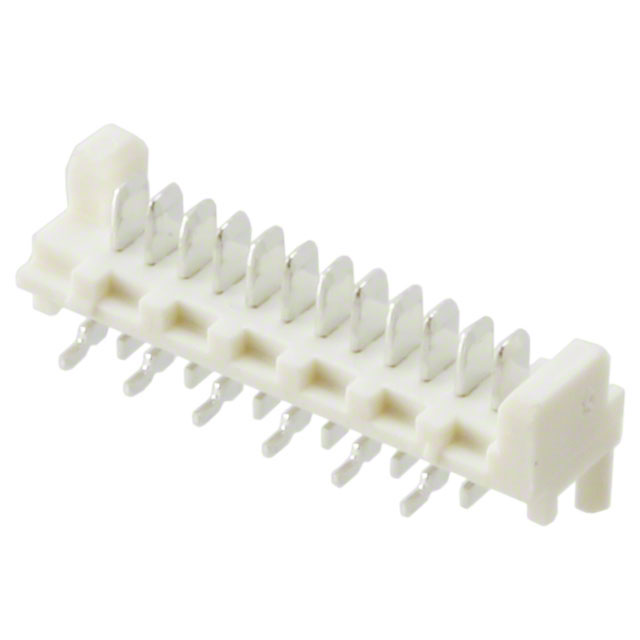

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0908140012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0908140012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0908140012 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 12POS 1.27MM SMD TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2940 pcs | ||||
|---|---|---|---|---|---|
| $0.166 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0908140012 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 12POS 1.27MM SMD TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 137834 pcs | Data sheet | 90814, 93405-x0,3 Pkg Spec90814-yyyy DrawingPicoflex® Brochure99020-0011 Prod Spec90814-001 Pkg Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Picoflex PF-50 90814 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 090814-0012 090814-0012-E 0908140012-E 90814-0012 90814-0012-E 90814-0012-ND 908140012 908140012-E WM19254 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.252" (6.40mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 12 position 0.050" (1.27mm) | Current Rating | 1.2A |
| Contact Type | Male Blade | Contact Shape | Rectangular |
| Contact Material | Cartridge Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.085" (2.15mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Medical |
