0905003013

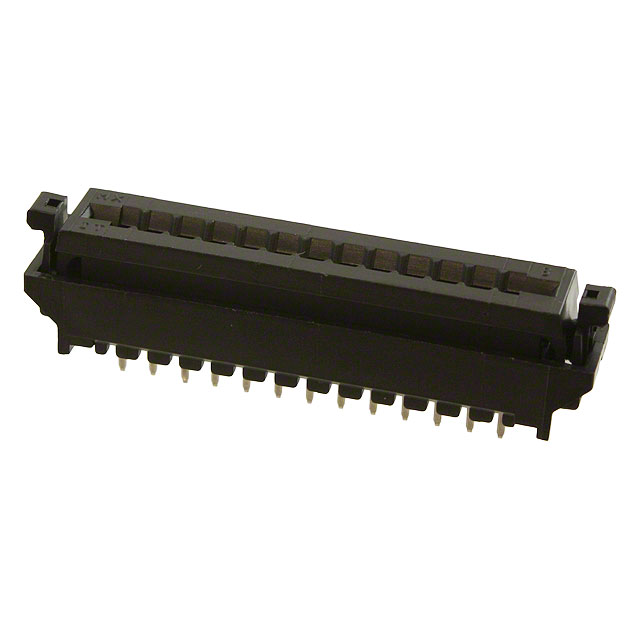

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0905003013 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0905003013 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0905003013 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 13POS 2.54MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0905003013 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 13POS 2.54MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4999 pcs | Data sheet | 90500-3013 |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Series | 90500 |
| Pitch | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 090500-3013 090500-3013-C 0905003013-C 90500-3013 90500-3013-C 90500-3013-ND 905003013 905003013-C SD-90500-001 WM6588 |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 13 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 50 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Housing Color | Black | Height Above Board | 0.346" (8.80mm) |
| Flat Flex Type | FFC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 13 Position FFC Connector Contacts, Vertical, 2 Sided 0.100" (2.54mm) Through Hole |
| Current Rating | 2.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Vertical, 2 Sided | Cable End Type | Notched |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled | Actuator Color | Black |
