0903250024

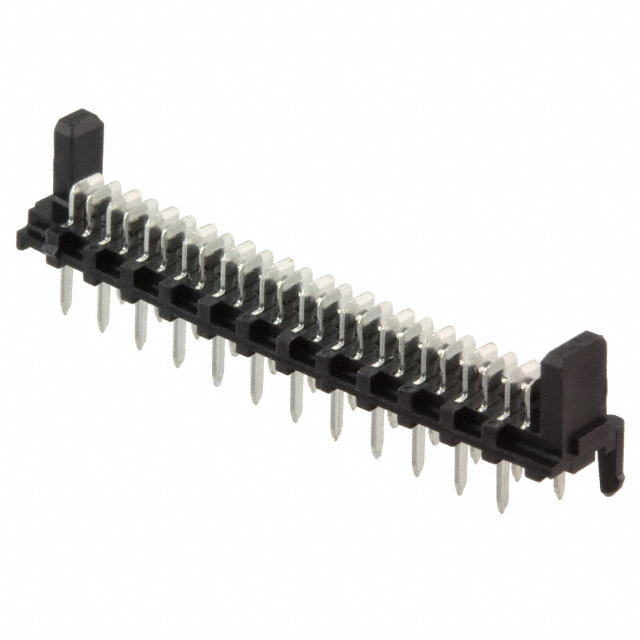

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0903250024 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0903250024 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0903250024 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 1.27MM PF HDR LOPRO POLZ BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.347 | $0.305 | $0.287 | $0.275 | $0.263 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.239 | $0.215 | $0.192 | $0.174 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0903250024 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 1.27MM PF HDR LOPRO POLZ BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 113914 pcs | Data sheet | 903250024Picoflex® Brochure |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Picoflex PF-50 90325 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 090325-0024 0903250024-ND 90325-0024 903250024 WM13316 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.252" (6.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 24 position 0.050" (1.27mm) |
| Current Rating | 1.2A | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
