0901512108

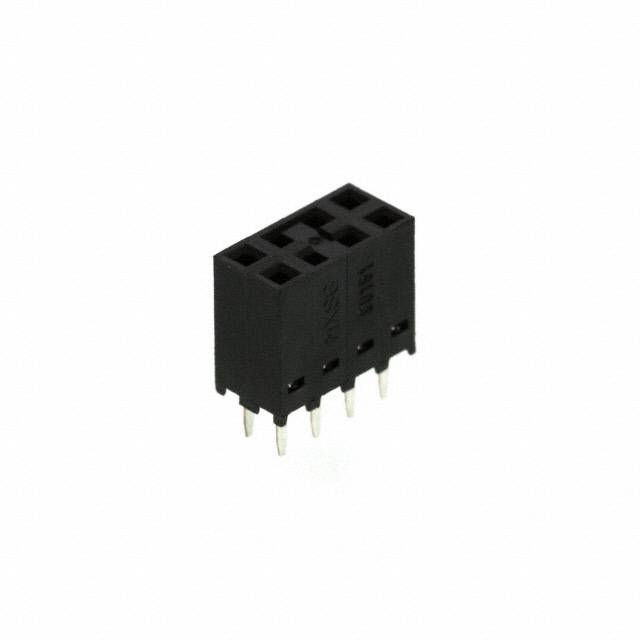

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0901512108 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0901512108 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0901512108 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN 8POS DUAL VERT TIN PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 2080 pcs |
|---|---|---|---|---|---|
| $1.588 | $1.525 | $1.271 | $1.08 | $0.889 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0901512108 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN 8POS DUAL VERT TIN PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41183 pcs | Data sheet | 0901512106 |
| Category | Connectors, Interconnects | Voltage Rating | 350V |
| Termination | Solder | Style | Board to Board |
| Series | C-Grid III 90151 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 090151-2108 0901512108-ND 90151-2108 901512108 WM14836 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.114" (2.90mm) | Contact Finish Thickness - Post | 40.0µin (1.02µm) |
| Contact Finish Thickness - Mating | 40.0µin (1.02µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
