0901303220
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0901303220 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0901303220 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0901303220 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 20POS .100" R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 880 pcs | 1760 pcs |
|---|---|---|---|---|---|
| $1.465 | $1.406 | $1.172 | $0.908 | $0.82 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0901303220 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 20POS .100" R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40841 pcs | Data sheet | 90130-322099020-0001 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | C-Grid III 90130 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 090130-3220 90130-3220 901303220 WM8282 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.384" (9.75mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.114" (2.90mm) | Contact Length - Mating | 0.266" (6.75mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose |
- Related products
- Related news
Related products
- Part#:
0901303212 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
CONN HEADER 12POS .100" R/A GOLD - In Stock:
62893
- Part#:
0901303310 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
CONN HEADER 10POS .100" R/A GOLD - In Stock:
4956
- Part#:
0901303306 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
CONN HEADER 6POS .100" R/A GOLD - In Stock:
5430
- Part#:
0901303128 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
CONN HEADER 28POS .100" R/A TIN - In Stock:
45925
- Part#:
0901303112 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
CONN HEADER 12POS .100" R/A TIN - In Stock:
83221
- Part#:
0901303308 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
CONN HEADER 8POS .100" R/A GOLD - In Stock:
84567
- Part#:
0901303206 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
CONN HEADER 6POS .100" R/A GOLD - In Stock:
74261
- Part#:

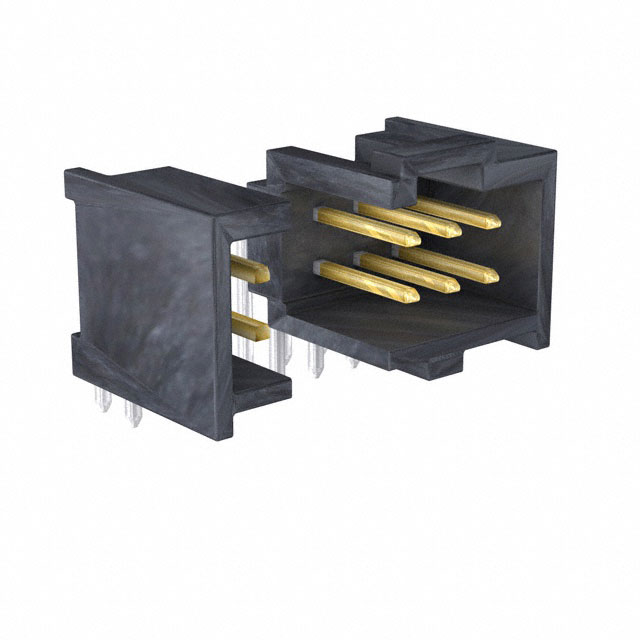

0901303210 - Manufacturers:
