09-52-3113

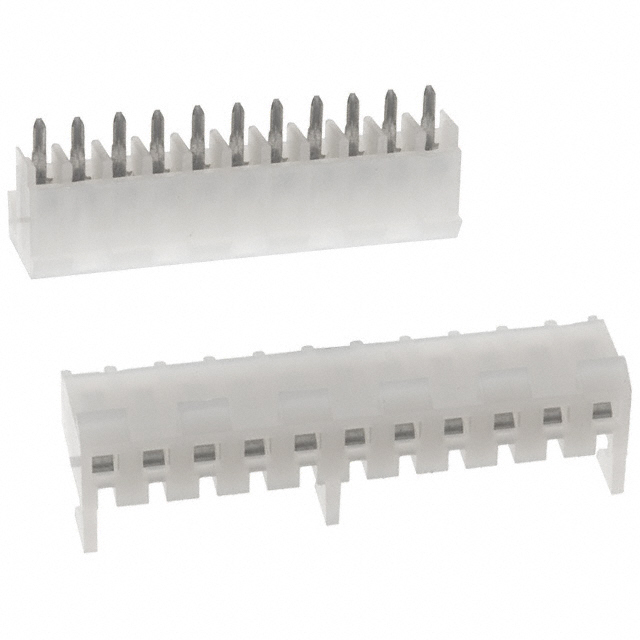

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09-52-3113 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09-52-3113 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09-52-3113 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT 11POS .156 VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09-52-3113 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT 11POS .156 VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4710 pcs | Data sheet | 09-52-3113 |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | KK 2145 | Row Spacing - Mating | - |
| Pitch - Mating | 0.156" (3.96mm) | Packaging | Tray |
| Other Names | 0009-52-3113 0009-52-3113-E 0009523113 0009523113-E 09-52-3113-E 09-52-3113-P 09523113 09523113-E A-2145-CA11A-P909 WM3508 |
Operating Temperature | -40°C ~ 80°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 11 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.449" (11.40mm) |
| Insulation Color | White | Ingress Protection | - |
| Features | Board Hooks | Fastening Type | Locking Ramp |
| Detailed Description | 11 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin | Current Rating | 4.5A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Medical, Telecommunications |
