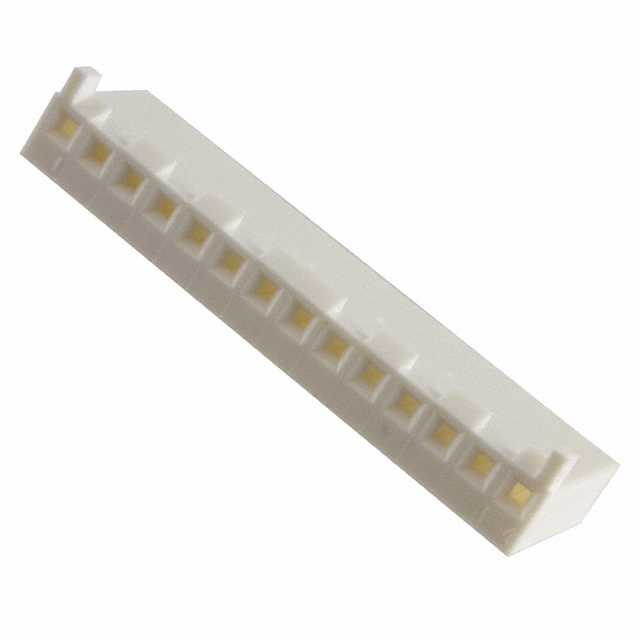

09-50-8143
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09-50-8143 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09-50-8143 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09-50-8143 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HOUS 14POS .156 W/RAMP/RIBS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.374 | $0.329 | $0.31 | $0.297 | $0.284 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.258 | $0.232 | $0.206 | $0.187 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09-50-8143 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HOUS 14POS .156 W/RAMP/RIBS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 109885 pcs | Data sheet | 09-50-8yyy,9yyy |
| Category | Connectors, Interconnects | Series | KK 41695 |
| Row Spacing | - | Pitch | 0.156" (3.96mm) |
| Packaging | Bulk | Other Names | 0009-50-8143 0009-50-8143-E 0009508143 0009508143-E 09-50-8143-E 09-50-8143-ND 09508143 09508143-E 41695-N-D14 9508143 Q1157560A WM4584 |
| Number of Rows | 1 | Number of Positions | 14 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Polarizing Key |
| Fastening Type | Locking Ramp | Detailed Description | 14 Position Rectangular Housing Connector Receptacle Natural 0.156" (3.96mm) |
| Contact Type | Non-Gendered | Contact Termination | Crimp |
| Connector Type | Receptacle | Color | Natural |
