09-48-1054
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09-48-1054 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09-48-1054 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09-48-1054 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

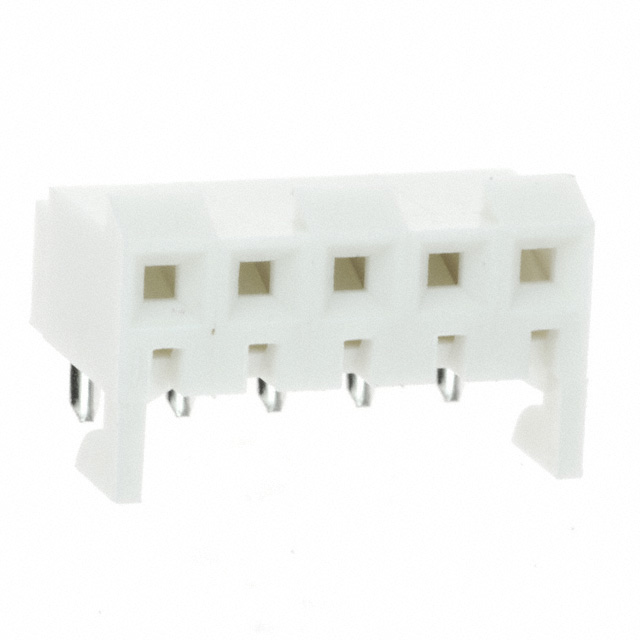

| Description | CONN RECEPT 5POS .156 R/A PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.522 | $0.474 | $0.406 | $0.339 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.29 | $0.257 | $0.252 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09-48-1054 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT 5POS .156 R/A PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83898 pcs | Data sheet | 09-48-1054 |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | KK 41815 | Row Spacing - Mating | - |
| Pitch - Mating | 0.156" (3.96mm) | Packaging | Tray |
| Other Names | 0009-48-1054 0009-48-1054-E 0009481054 0009481054-E 09-48-1054-E 09481054 09481054-E 9481054 A-41815-0005 WM13302 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 0.308" (7.82mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Hooks |
| Fastening Type | Locking Ramp | Detailed Description | 5 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin |
| Current Rating | 5A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.145" (3.68mm) | Contact Finish Thickness - Post | 60.0µin (1.52µm) |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
