0894000820

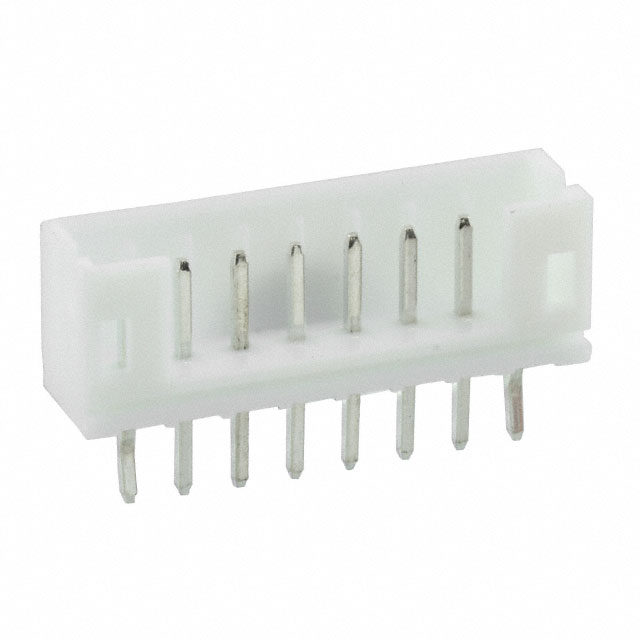

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0894000820 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0894000820 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0894000820 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 8CKT 2MM W-B ST HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.121 | $0.115 | $0.08 | $0.069 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.057 | $0.049 | $0.046 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0894000820 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 8CKT 2MM W-B ST HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 448964 pcs | Data sheet | 894000820 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 89400 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 089400-0820 0894000820-ND 89400-0820 894000820 WM14853 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.238" (6.05mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 8 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
