0878980526

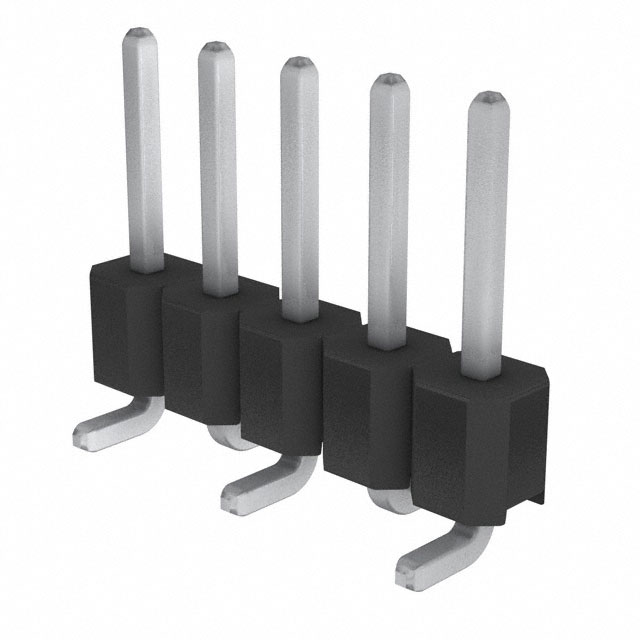

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0878980526 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0878980526 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0878980526 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.54MM SRSW SMT HDR W/O CAP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.312 | $0.276 | $0.238 | $0.194 | ||
| 1320 pcs | 5280 pcs | 10560 pcs | |||
| $0.173 | $0.151 | $0.144 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0878980526 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2.54MM SRSW SMT HDR W/O CAP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 168280 pcs | Data sheet | 878980526 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | C-Grid SL 87898 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 087898-0526 0878980526-ND 87898-0526 878980526 WM14826 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 5 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
