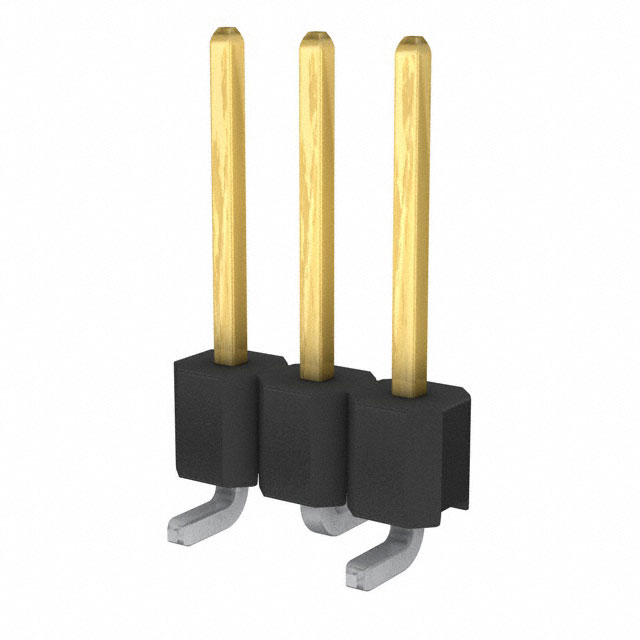

0878980364
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0878980364 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0878980364 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0878980364 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.54MM SRSW SMTHDR W/CAP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 7200 pcs | ||||
|---|---|---|---|---|---|
| $0.24 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0878980364 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2.54MM SRSW SMTHDR W/CAP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82849 pcs | Data sheet | 87898 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | C-Grid SL 87898 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 087898-0364 87898-0364 878980364 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 3 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.320" (8.13mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
