0878341611
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0878341611 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0878341611 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0878341611 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

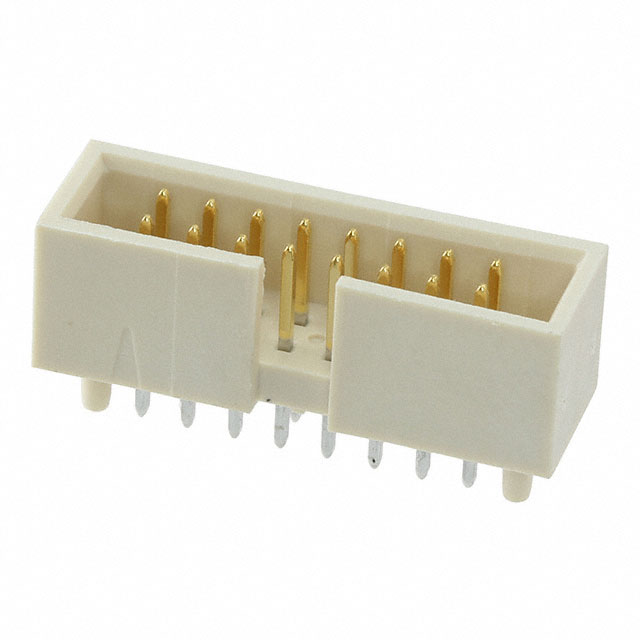

| Description | CONN HEADER 16POS .100" T/H GLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.846 | $0.767 | $0.657 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.548 | $0.469 | $0.416 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0878341611 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 16POS .100" T/H GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81150 pcs | Data sheet | 87834-1611 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | C-Grid 87834 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | 0.490" (12.45mm) |
| Other Names | 87834-1611 87834-1611-ND WM14169 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.365" (9.27mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Board Guide, Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 16 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.135" (3.43mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 98.4µin (2.50µm) | Contact Finish Thickness - Mating | 5.11µin (0.130µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
