0878322623

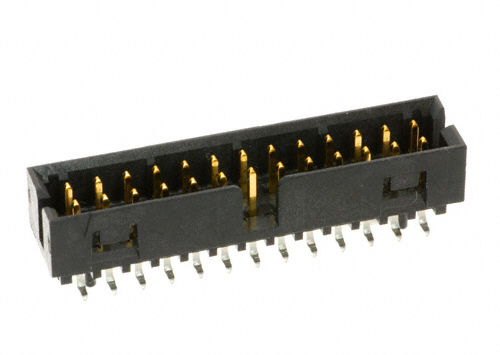

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0878322623 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0878322623 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0878322623 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MGRID HDR SHRD SMT/PGS/CAP 26CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3600 pcs | ||||
|---|---|---|---|---|---|
| $0.822 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0878322623 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MGRID HDR SHRD SMT/PGS/CAP 26CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46375 pcs | Data sheet | 87832-300 Pkg Spec0878322623 Drawing87831-33 Series Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Milli-Grid 87832 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 0878-32-2623 087832-2623 87832-2623 878322623 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.252" (6.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Keying Slot, Pick and Place |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount 26 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.141" (3.60mm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Telecommunications |
