0878321206

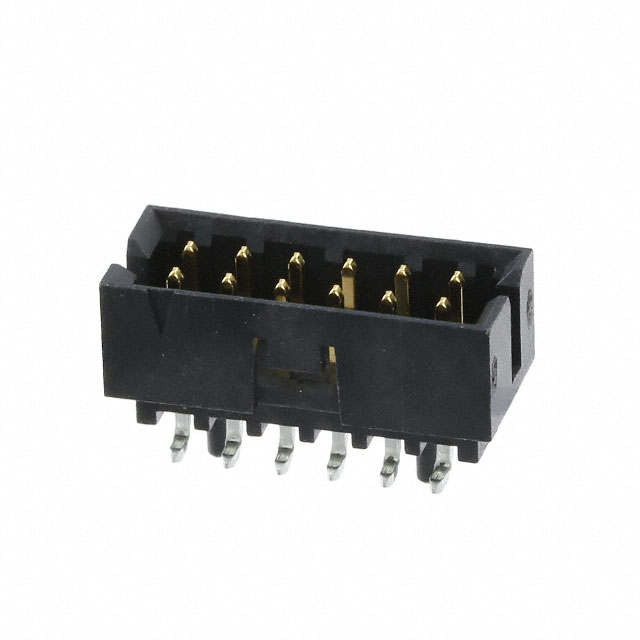

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0878321206 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0878321206 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0878321206 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MGRID HDR SHRD SMT/CAP 12CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 1500 pcs | 2500 pcs | 5000 pcs |
|---|---|---|---|---|---|
| $0.798 | $0.681 | $0.657 | $0.634 | $0.61 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0878321206 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MGRID HDR SHRD SMT/CAP 12CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59223 pcs | Data sheet | 87832-300 Pkg Spec87831-33 Series Prod Spec0878321206 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Milli-Grid 87832 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 0878-32-1206 087832-1206 0878321206-ND 87832-1206 878321206 WM12803TR |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.252" (6.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Pick and Place |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount 12 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.141" (3.60mm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Telecommunications |
