0878311421

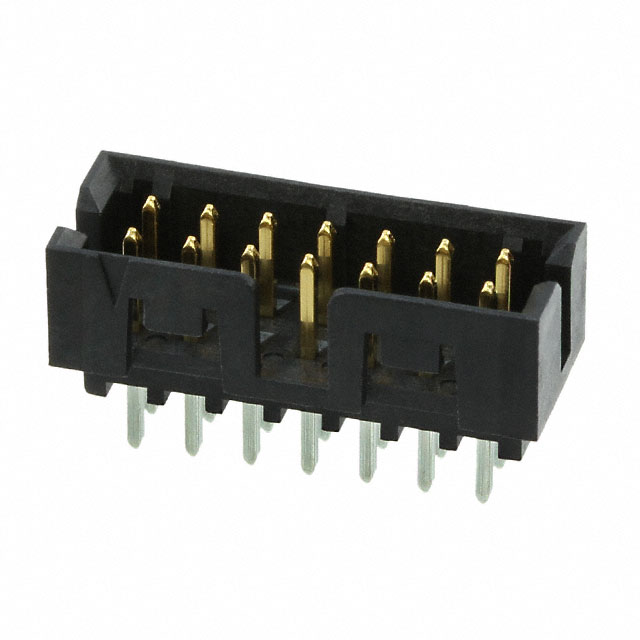

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0878311421 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0878311421 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0878311421 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | HEADER SHRD VT SLOT/STDF 14CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.574 | $0.521 | $0.446 | $0.372 | ||
| 3200 pcs | 6400 pcs | 12800 pcs | |||
| $0.298 | $0.283 | $0.276 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0878311421 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | HEADER SHRD VT SLOT/STDF 14CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78198 pcs | Data sheet | 87831-33 Series Prod Spec878311421 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Milli-Grid 87831 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 87831-1421 878311421 WM4224 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.252" (6.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 14 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.098" (2.50mm) | Contact Length - Mating | 0.141" (3.60mm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Telecommunications |
