0877590475

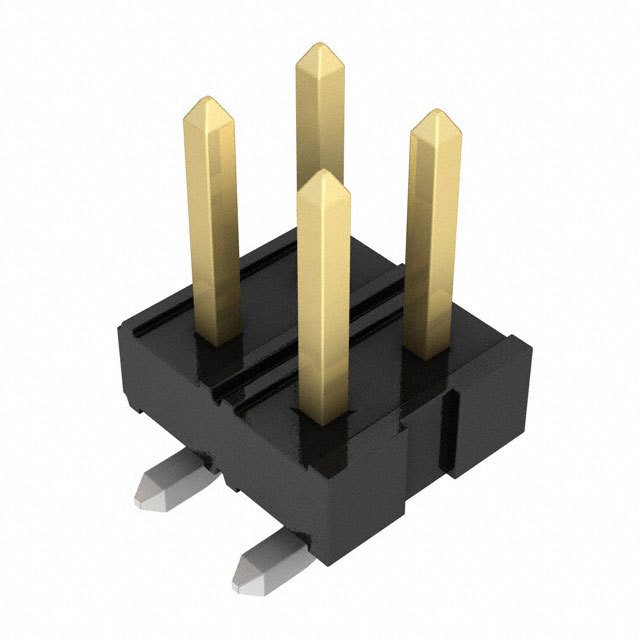

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0877590475 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0877590475 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0877590475 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2MM MGRID HDR SMT W/CAP T&R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4500 pcs | ||||
|---|---|---|---|---|---|
| $0.198 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0877590475 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2MM MGRID HDR SMT W/CAP T&R | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 109188 pcs | Data sheet | 877590475 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | Milli-Grid 87759 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 087759-0475 87759-0475 877590475 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 4 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.150" (3.81mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Telecommunications |
