0877580218

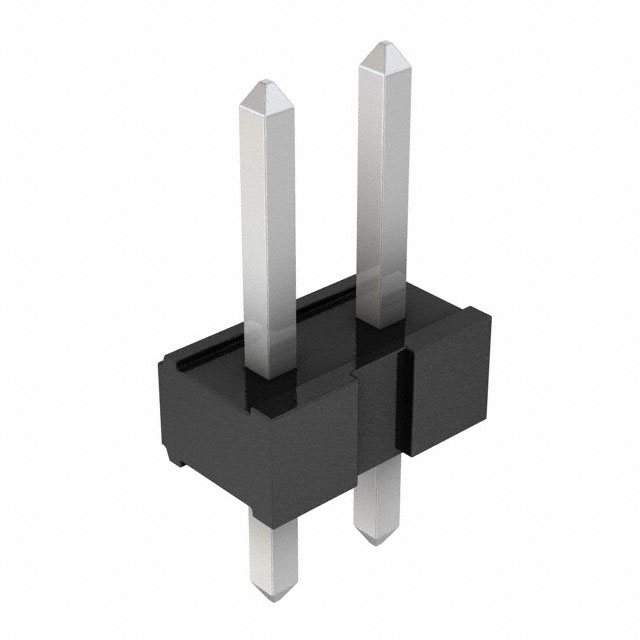

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0877580218 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0877580218 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0877580218 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MGRID DRSW VERT TH HDR 02CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 24000 pcs | ||||
|---|---|---|---|---|---|
| $0.051 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0877580218 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MGRID DRSW VERT TH HDR 02CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 431337 pcs | Data sheet | 877580218 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | Milli-Grid 87758 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | 0.319" (8.10mm) |
| Other Names | 0877-58-0218 877-58-0218 87758-0218 877580218 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.102" (2.60mm) | Contact Length - Mating | 0.157" (4.00mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Telecommunications |
