0874380243

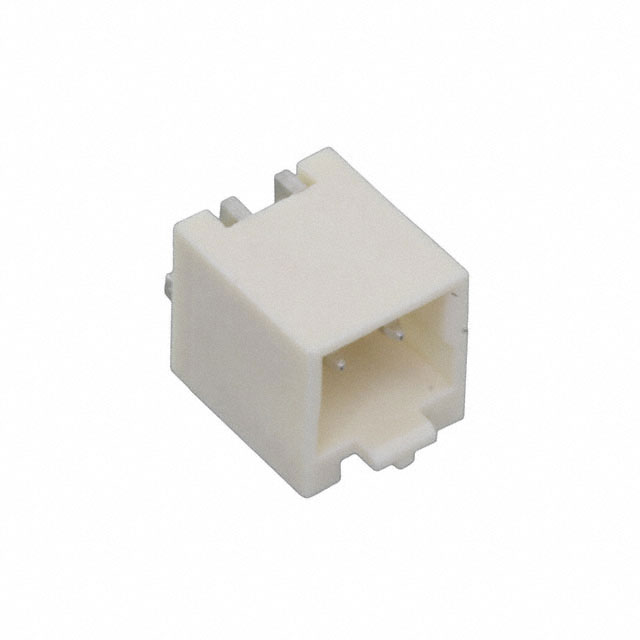

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0874380243 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0874380243 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0874380243 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 2POS 1.5MM R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | ||
|---|---|---|---|---|---|
| $0.107 | $0.104 | $0.098 | |||
| 5000 pcs | 10000 pcs | 25000 pcs | |||
| $0.094 | $0.088 | $0.085 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0874380243 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 2POS 1.5MM R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 238961 pcs | Data sheet | 87438-0243 |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Pico-SPOX 87438 |
| Row Spacing - Mating | - | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 087438-0243 087438-0243-C 0874380243-C 87438-0243 87438-0243-C 874380243 874380243-C WM7646TR |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.175" (4.45mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.059" (1.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.106" (2.70mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Medical |
