0874270602

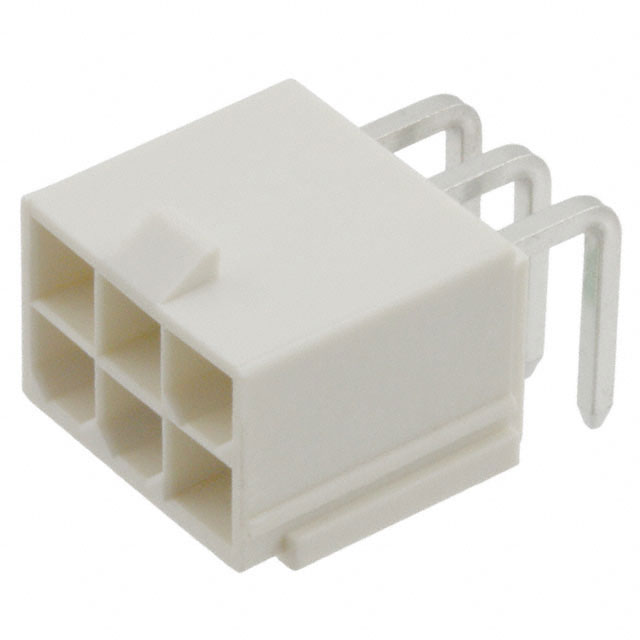

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0874270602 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0874270602 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0874270602 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 4.20MM WTB R/A HEADER 6CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.511 | $0.465 | $0.399 | $0.332 | ||
| 1260 pcs | 5040 pcs | 10080 pcs | |||
| $0.285 | $0.253 | $0.247 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0874270602 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 4.20MM WTB R/A HEADER 6CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89376 pcs | Data sheet | 087427060287427, 5557, 5556 Product Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Jr 87427 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 087427-0602 87427-0602 874270602 WM3580 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.394" (10.00mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Telecommunications |
