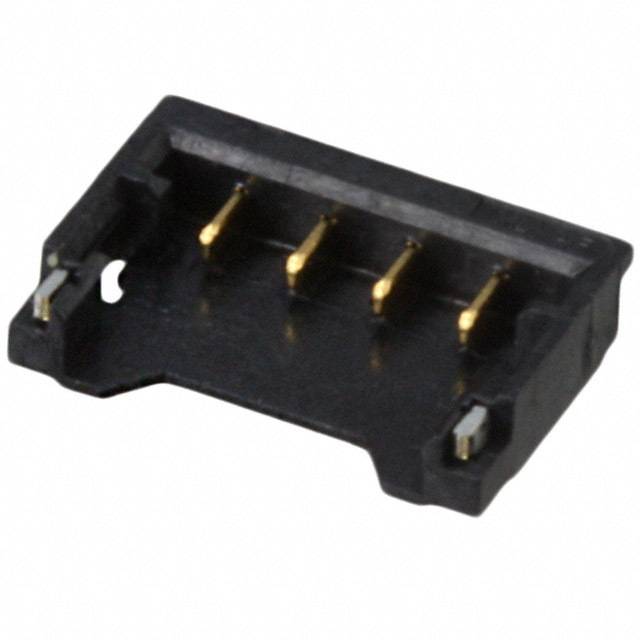

0781710004
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0781710004 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0781710004 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0781710004 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 1.20MM WTB HEADER VERT 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.241 | $0.225 | $0.173 | $0.15 | $0.124 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0781710004 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 1.20MM WTB HEADER VERT 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157972 pcs | Data sheet | 78172-007 Appl Spec78171-000x Pkg Spec78171, 78172 Series Product Spec078171-0002(3,4,5) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | Pico-EZmate 78171 |
| Row Spacing - Mating | - | Pitch - Mating | 0.047" (1.20mm) |
| Packaging | Original-Reel® | Overall Contact Length | - |
| Other Names | WM4460DKR | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.055" (1.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Surface Mount 4 position 0.047" (1.20mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Plug | Applications | Automotive, General Purpose, Lighting, Telecommunications |
