0781271148

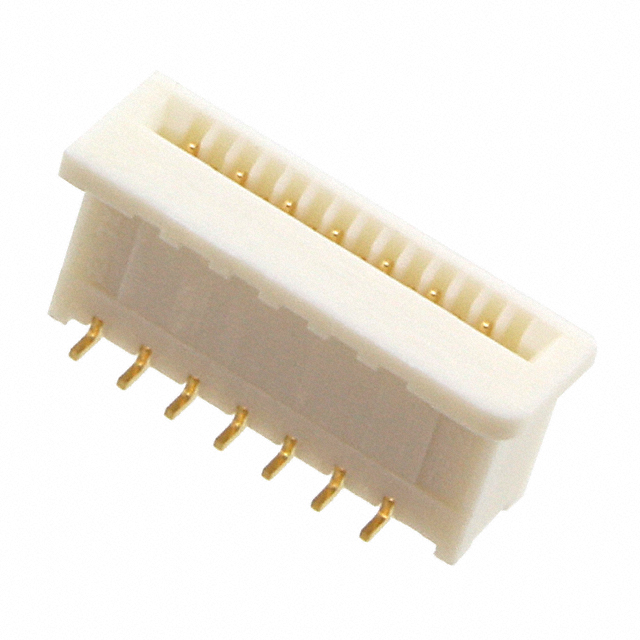

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0781271148 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0781271148 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0781271148 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 14POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $0.242 | $0.227 | $0.219 | $0.212 | $0.201 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0781271148 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 14POS 0.50MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 107803 pcs | Data sheet | 0781271148 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | 78127 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 0781271148-ND 78127-1148 781271148 WM9675TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Housing Color | Natural |
| Height Above Board | 0.161" (4.10mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 14 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Tapered | Actuator Material | - |
| Actuator Color | - |
