0781202407

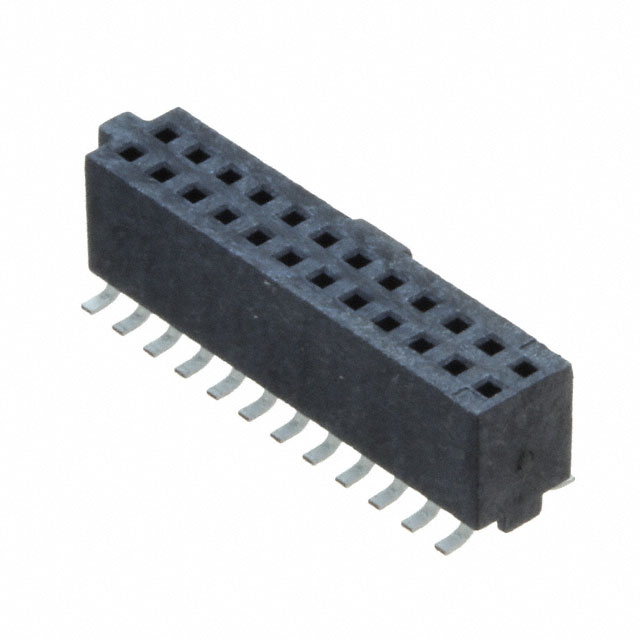

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0781202407 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0781202407 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0781202407 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | SLIM-GRID RECEPTACLE, 24 CIRCUIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 32 pcs | 128 pcs | 512 pcs | |
|---|---|---|---|---|---|
| $0.679 | $0.577 | $0.527 | $0.439 | ||
| 1024 pcs | 5024 pcs | 10016 pcs | |||
| $0.376 | $0.334 | $0.326 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0781202407 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | SLIM-GRID RECEPTACLE, 24 CIRCUIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73455 pcs | Data sheet | Slim-Grid Datasheet78120001 Prod Spec0781202407 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder | Style | Board to Board |
| Series | Slim-Grid 78120 | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | 078120-2407 0781202407-ND 78120-2407 781202407 WM16692 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free | Insulation Height | 0.178" (4.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | 24 Position Receptacle Connector Surface Mount | Current Rating | 4.3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 1.97µin (0.050µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Telecommunications |
