0781201218

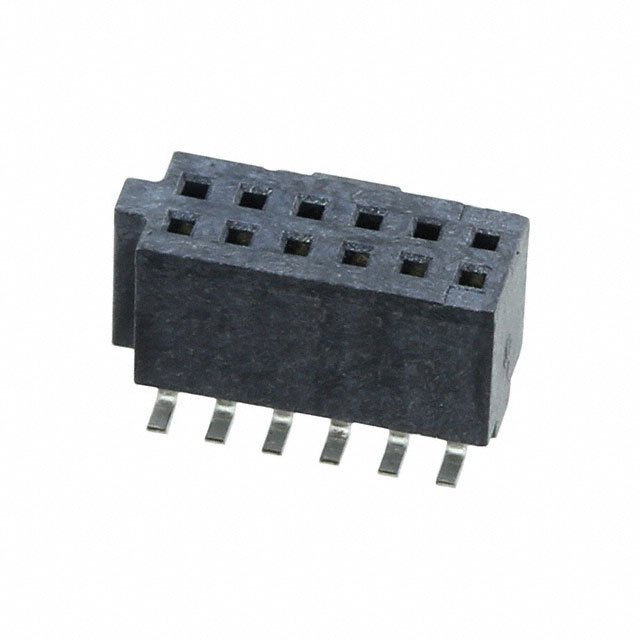

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0781201218 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0781201218 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0781201218 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | SLIM-GRID RECEPTACLE, 12 CIRCUIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0781201218 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | SLIM-GRID RECEPTACLE, 12 CIRCUIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4266 pcs | Data sheet | Slim-Grid Datasheet0781201218 Drawing78120001 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder | Style | Board to Board |
| Series | Slim-Grid 78120 | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | 078120-1218 78120-1218 781201218 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free |
| Insulation Height | 0.178" (4.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Locking Ramp | Detailed Description | 12 Position Receptacle Connector Surface Mount |
| Current Rating | 4.3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Telecommunications |
