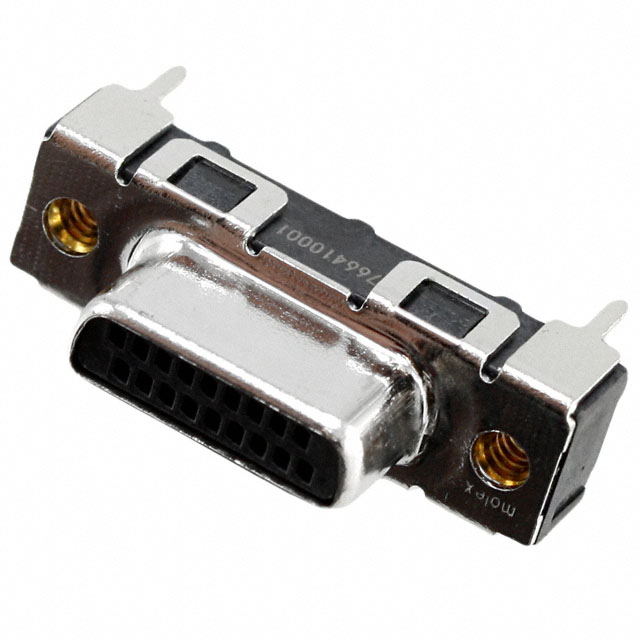

0766410001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0766410001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0766410001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0766410001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN D-TYPE RCPT 18POS VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.478 | $4.98 | $4.855 | $4.482 | ||
| 100 pcs | 432 pcs | 864 pcs | |||
| $4.233 | $3.859 | $3.411 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0766410001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN D-TYPE RCPT 18POS VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10816 pcs | Data sheet | 0766410001 Drawing0766410001 Spec |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 40V | Termination | Solder |
| Shell Size, Connector Layout | 0.050 Pitch x 0.065 Row to Row | Shell Material, Finish | Steel, Tin Plated |
| Series | PCI Express®, TDP™ | Packaging | Tube |
| Other Names | 076641-0001 76641-0001 766410001 WM4748 |
Operating Temperature | -20°C ~ 85°C |
| Number of Rows | 2 | Number of Positions | 18 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polymer, Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Board Guide, Shielded | Detailed Description | 18 Position D-Type Receptacle, Female Sockets Connector |
| Current Rating | 1.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 15.0µin (0.38µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Type |
| Color | Black | Backset Spacing | - |
