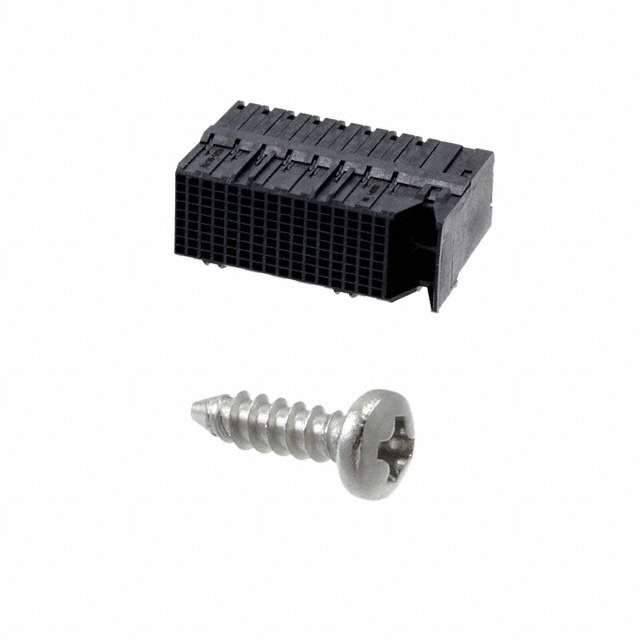

0761705026
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0761705026 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0761705026 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0761705026 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | IMPACT DC 3X16 GR SN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.604 | $6.13 | $5.502 | $5.344 | ||
| 147 pcs | 294 pcs | 588 pcs | |||
| $4.716 | $4.401 | $4.307 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0761705026 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | IMPACT DC 3X16 GR SN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8501 pcs | Data sheet | 0761705026 |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Press-Fit | Series | Impact 76170 |
| Pitch | 0.053" (1.35mm) | Packaging | Tray |
| Other Names | 0761705026-ND 76170-5026 761705026 WM10790 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 9 | Number of Positions Loaded | All |
| Number of Positions | 144 | Number of Columns | 16 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Board Guide |
| Current Rating | - | Contact Layout, Typical | 48 Differential Pairs |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Receptacle, Female Sockets |
| Connector Style | Impact, Guide Right | Color | Black |
