0757571161

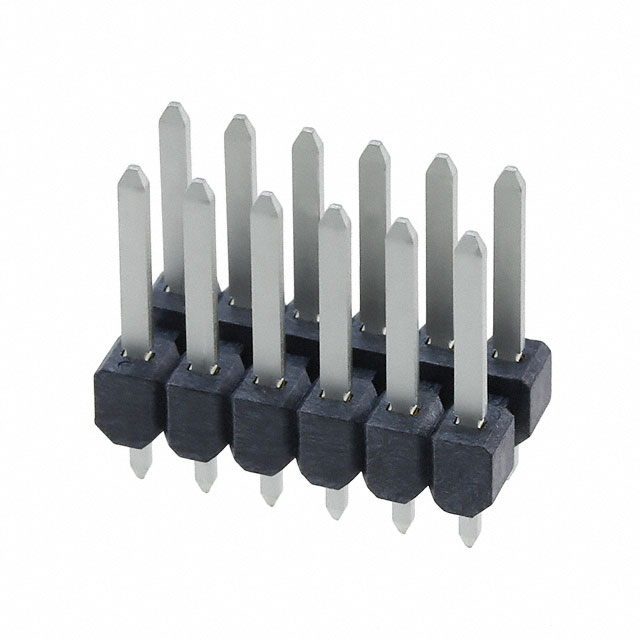

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0757571161 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0757571161 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0757571161 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 2X6 VERT BRKWAY TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 350 pcs | 700 pcs | |
|---|---|---|---|---|---|
| $0.719 | $0.653 | $0.506 | $0.466 | ||
| 1050 pcs | 5250 pcs | 10150 pcs | |||
| $0.40 | $0.354 | $0.346 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0757571161 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 2X6 VERT BRKWAY TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60253 pcs | Data sheet | 0757571161 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | MX150 75757 |
| Row Spacing - Mating | 0.236" (6.00mm) | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Tube | Overall Contact Length | 0.738" (18.75mm) |
| Other Names | 0757571161-ND 75757-1161 757571161 WM12842 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.177" (4.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 12 position 0.138" (3.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Cartridge Brass |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.441" (11.20mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Breakaway | Applications | Automotive |
