0757570441

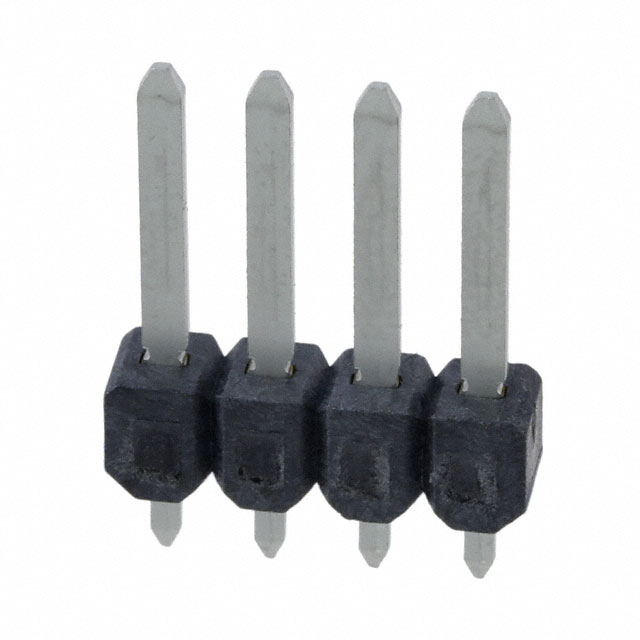

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0757570441 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0757570441 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0757570441 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 1X4 VERT BRKWAY TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.213 | $0.199 | $0.152 | $0.133 | ||
| 1710 pcs | 5130 pcs | 10260 pcs | |||
| $0.106 | $0.096 | $0.089 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0757570441 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 1X4 VERT BRKWAY TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 235323 pcs | Data sheet | 0757570441 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | MX150 75757 |
| Row Spacing - Mating | - | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Tube | Overall Contact Length | 0.738" (18.75mm) |
| Other Names | 0757570441-ND 75757-0441 757570441 WM12840 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.177" (4.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.138" (3.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Cartridge Brass |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.441" (11.20mm) |
| Contact Finish Thickness - Post | 59.0µin (1.50µm) | Contact Finish Thickness - Mating | 59.0µin (1.50µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Breakaway | Applications | Automotive |
