0755611500

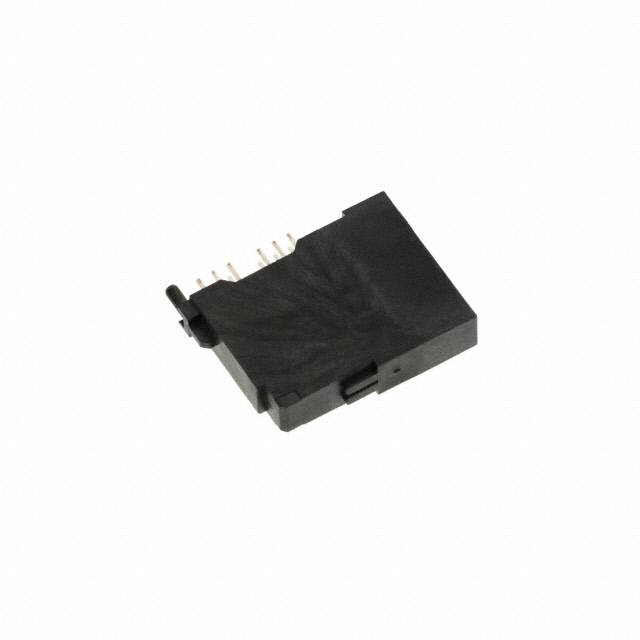

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0755611500 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0755611500 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0755611500 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | DUAL BLADE POWER PLUG 80 AMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.447 | $2.344 | $2.14 | $2.038 | ||
| 100 pcs | 276 pcs | 552 pcs | 1104 pcs | ||
| $1.936 | $1.732 | $1.631 | $1.427 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0755611500 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | DUAL BLADE POWER PLUG 80 AMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23609 pcs | Data sheet | 0755611500 |
| Category | Connectors, Interconnects | Voltage Rating | 450V |
| Termination | Solder | Series | EXTreme PowerMass 75561 |
| Pitch | - | Packaging | Tray |
| Other Names | 0755611500-ND 75561-1500 755611500 WM20444 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 2 | Number of Columns | - |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Board Guide |
| Current Rating | 80A | Contact Layout, Typical | 2 Power |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Header, Male Blades |
| Connector Style | Power | Color | Black |
