0751020041

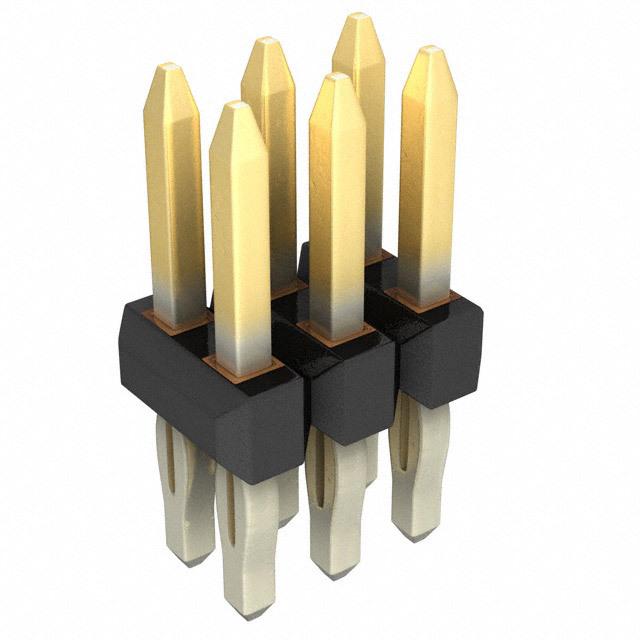

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0751020041 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0751020041 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0751020041 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HDR DUAL 6POS .100 SRT AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.009 | $3.644 | $3.553 | $3.28 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $3.098 | $2.824 | $2.642 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0751020041 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HDR DUAL 6POS .100 SRT AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13477 pcs | Data sheet | 75102 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | C-Grid 75102 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.517" (13.13mm) |
| Other Names | 075102-0041 075102-0041-E 0751020041-E 75102-0041 75102-0041-E 751020041 751020041-E WM50024-06 WM7506 WM7506-ND |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.090" (2.29mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.187" (4.75mm) |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
