0750190013

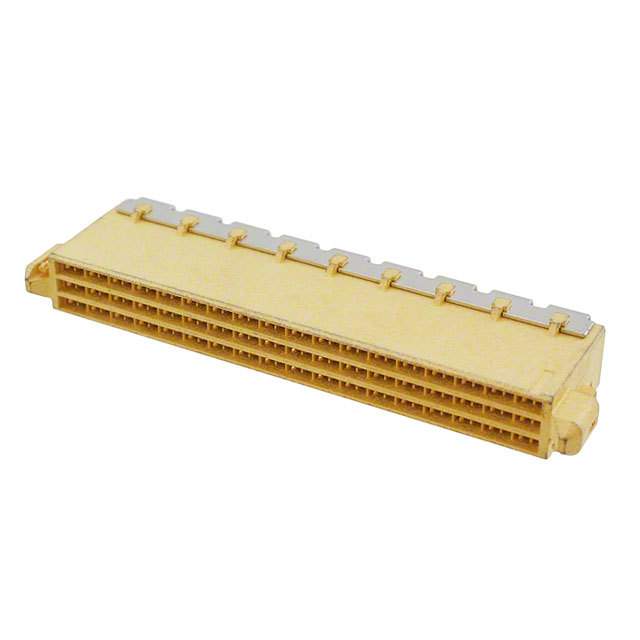

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0750190013 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0750190013 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0750190013 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT 108POS R/A 1.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0750190013 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT 108POS R/A 1.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4707 pcs | Data sheet | 0750190013 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | Plateau HS Dock 75019 | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Tray |
| Other Names | 075019-0013 75019-0013 750190013 WM8598 |
Operating Temperature | -20°C ~ 85°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 108 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free | Insulation Height | 0.393" (9.98mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | 108 Position Receptacle Connector Through Hole, Right Angle Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.111" (2.82mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Industrial, Military, Telecommunications |
