0750180014

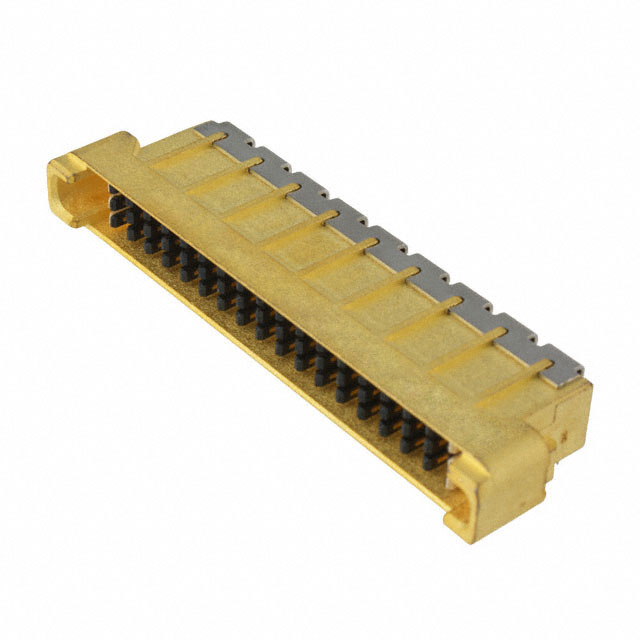

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0750180014 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0750180014 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0750180014 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 108POS GOLD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0750180014 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 108POS GOLD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4235 pcs | Data sheet | 07501800147500(5,3) Series Appl Spec7500(5,3) Series Product Spec |
| Category | Connectors, Interconnects | Voltage Rating | 12V |
| Termination | Press-Fit, Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Plateau HS Dock 75018 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 075018-0014 75018-0014 750180014 WM3559 |
Operating Temperature | -20°C ~ 85°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 108 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.424" (10.77mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 108 position | Current Rating | 1.5A |
| Contact Type | Male Blade; Male Pin | Contact Shape | Rectangular, Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.112" (2.84mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
