0749603048

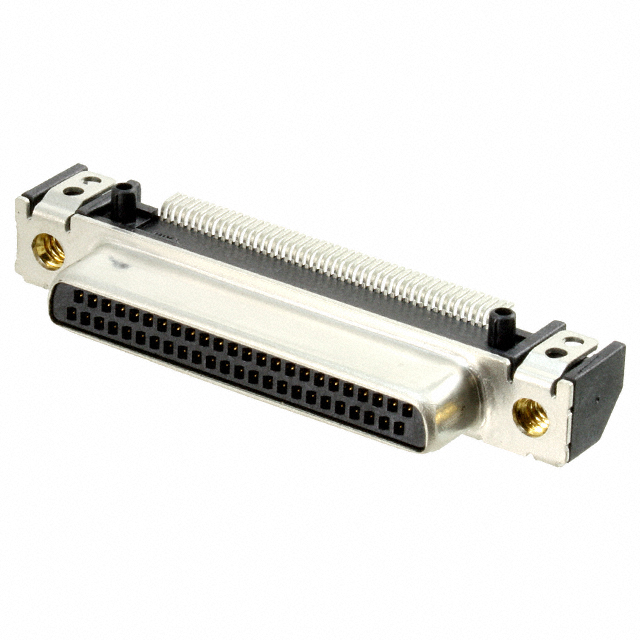

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0749603048 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0749603048 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0749603048 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN D-TYPE RCPT 48POS SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0749603048 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN D-TYPE RCPT 48POS SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4971 pcs | Data sheet | 0749603048 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 40V | Termination | Solder |
| Shell Size, Connector Layout | 0.050 Pitch x 0.065 Row to Row | Shell Material, Finish | Steel, Tin Plated |
| Series | PCI Express®, TDP™ | Packaging | Tape & Reel (TR) |
| Other Names | 074960-3048 74960-3048 749603048 WM7129TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Rows | 2 | Number of Positions | 48 |
| Mounting Type | Panel Mount, Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polymer, Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Features | Board Lock, Shielded |
| Detailed Description | 48 Position D-Type Receptacle, Female Sockets Connector | Current Rating | 1.5A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Type | Color | Black |
| Backset Spacing | - |
