0734155230
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0734155230 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0734155230 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0734155230 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN MCX JACK STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.051 | $1.007 | $0.923 | $0.881 | $0.839 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.735 | $0.714 | $0.609 | $0.567 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0734155230 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN MCX JACK STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52558 pcs | Data sheet | 0734155230 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Crimp | Series | 73415 |
| Packaging | Bulk | Other Names | 0734-15-5230 073415-5230 0734155230-ND 73415-5230 734155230 WM16589 |
| Operating Temperature | -55°C ~ 155°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

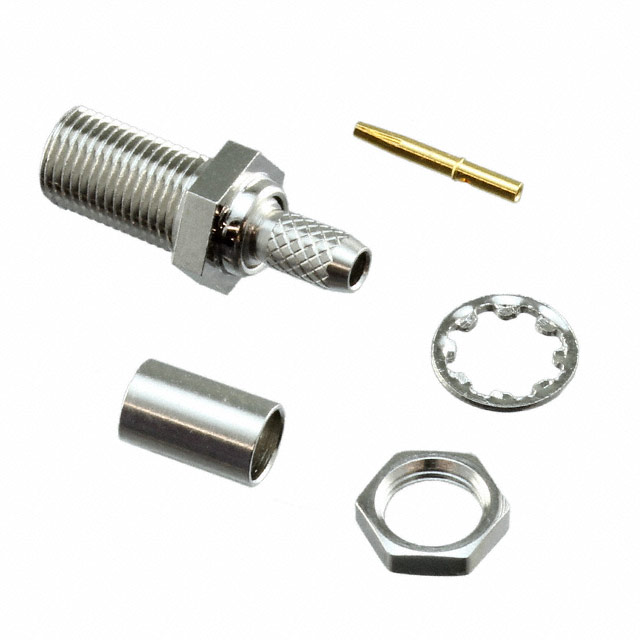

| Includes | 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MCX Connector Jack, Female Socket 50 Ohm Panel Mount Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | MCX | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-174, 188, 316 |
| Body Material | Brass | Body Finish | Nickel |
