0719790204

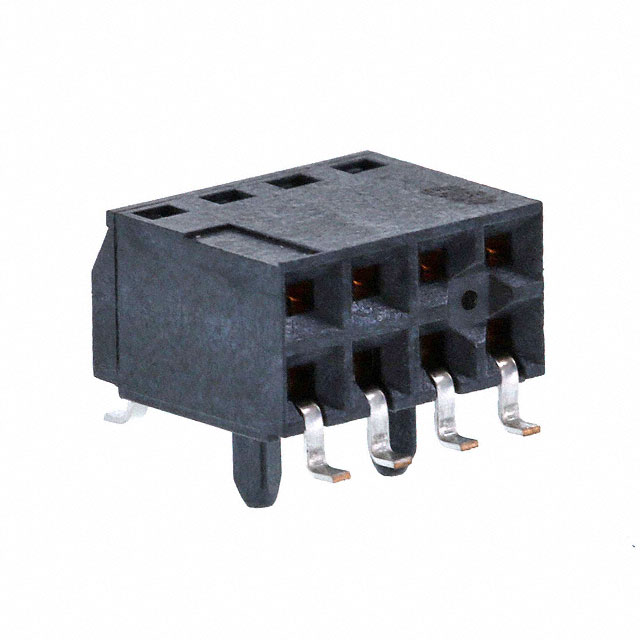

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0719790204 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0719790204 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0719790204 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT R/A DL SMD GOLD 8POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 2544 pcs |
|---|---|---|---|---|---|
| $1.606 | $1.542 | $1.285 | $1.092 | $0.867 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0719790204 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT R/A DL SMD GOLD 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35174 pcs | Data sheet | 0719790204 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | C-Grid 71979 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 071979-0204 0719790204-ND 71979-0204 719790204 WM17250 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.266" (6.76mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
