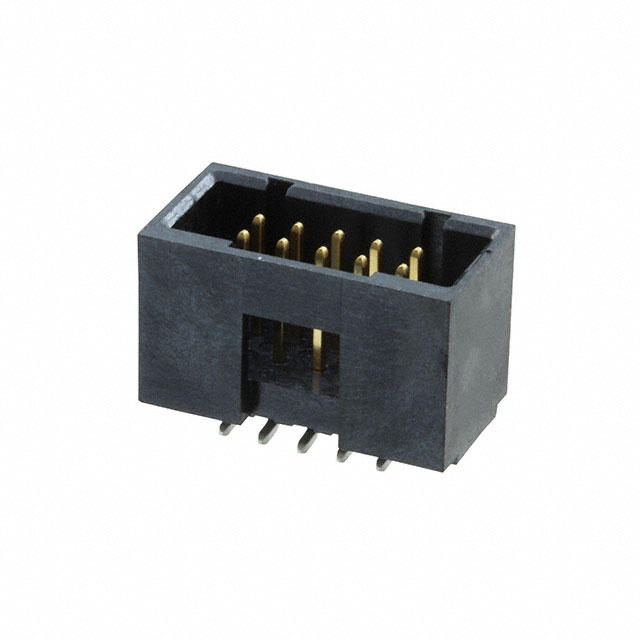

0713491037
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0713491037 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0713491037 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0713491037 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SMD SHD HDR GOLD 10POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 648 pcs | 1296 pcs |
|---|---|---|---|---|---|
| $1.606 | $1.54 | $1.283 | $1.091 | $0.93 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0713491037 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SMD SHD HDR GOLD 10POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35430 pcs | Data sheet | 0713491001 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | C-Grid 71349 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 071349-1037 0713491037-ND 71349-1037 713491037 WM14791 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.525" (13.34mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount 10 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.315" (8.00mm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
