0709282002

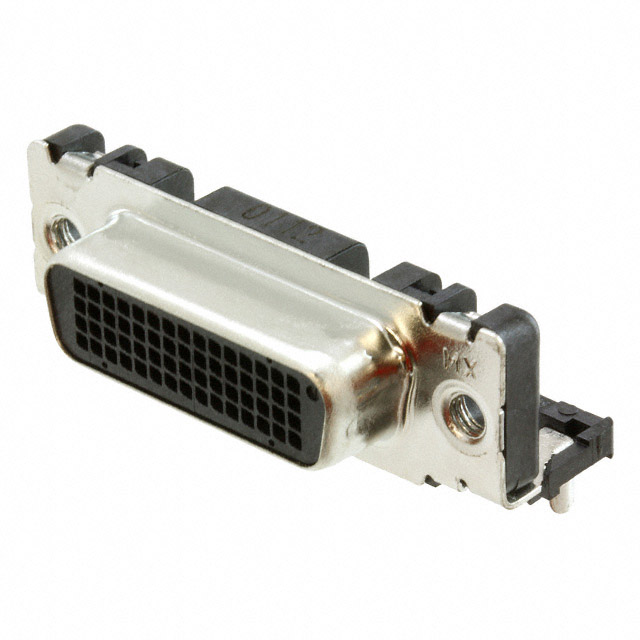

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0709282002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0709282002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0709282002 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN D-TYPE RCPT 60POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0709282002 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN D-TYPE RCPT 60POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5382 pcs | Data sheet | 70928-2002 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 40V | Termination | Solder |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | Shell Material, Finish | Steel, Tin Plated |
| Series | Low Force Helix (LFH) 70928 | Packaging | Tube |
| Other Names | 070928-2002 070928-2002-E 0709282002-E 0709282002-ND 70928-2002 70928-2002-E 70928-2002-ND 709282002 709282002-E WM9228 |
Operating Temperature | -20°C ~ 80°C |
| Number of Rows | 4 | Number of Positions | 60 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polymer, Glass Filled |
| Flange Feature | Housing/Shell (M3) | Features | Board Lock, Shielded |
| Detailed Description | 60 Position D-Type, Board to Board, Matrix Receptacle, Female Sockets Connector | Current Rating | 1A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Type, Board to Board, Matrix | Color | Black |
| Backset Spacing | 0.208" (5.28mm) |
