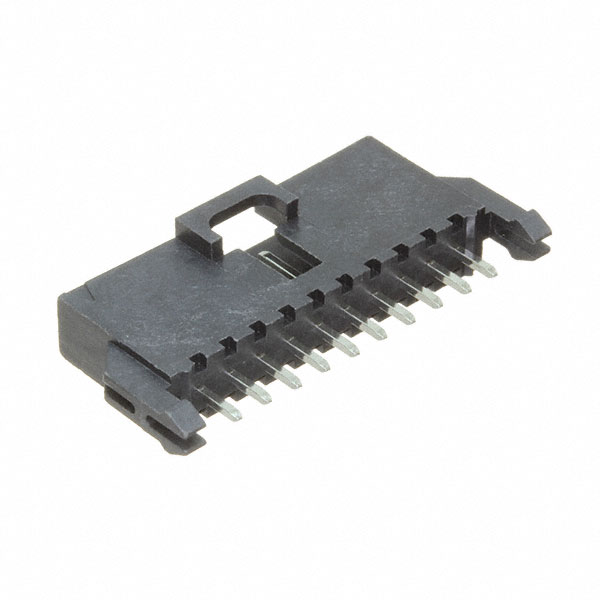

0705410009
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0705410009 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0705410009 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0705410009 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | SL VERT LATCH HEADER TIN 10POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.742 | $0.674 | $0.578 | $0.481 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.413 | $0.366 | $0.358 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0705410009 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | SL VERT LATCH HEADER TIN 10POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54853 pcs | Data sheet | 70541 Series DrawingSL Series Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SL 70541 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.470" (11.94mm) |
| Other Names | 0705-41-0009 070541-0009 0705410009-ND 705-41-0009 70541-0009 705410009 WM21000 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.465" (11.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
