0681512025

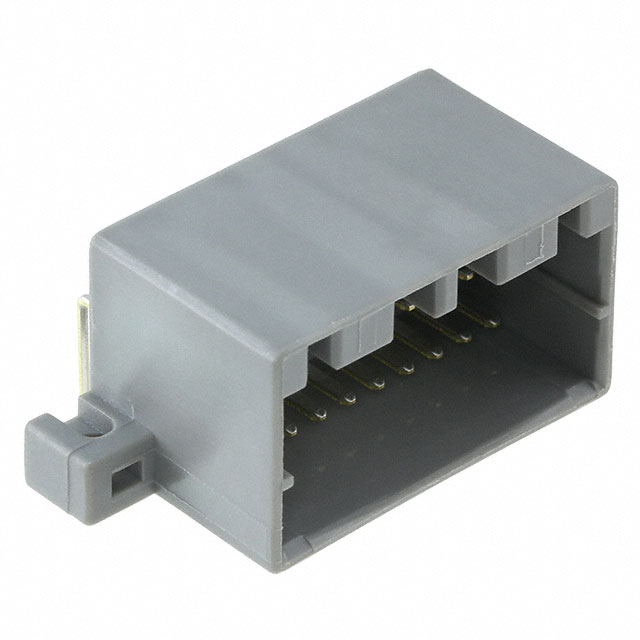

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0681512025 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0681512025 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0681512025 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 040 W/B 20P HEAD ASSY HZT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 720 pcs | 1440 pcs |
|---|---|---|---|---|---|
| $1.675 | $1.606 | $1.339 | $1.138 | $0.971 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0681512025 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 040 W/B 20P HEAD ASSY HZT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40784 pcs | Data sheet | 681512025 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 68151 |
| Row Spacing - Mating | 0.205" (5.20mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 068151-2025 0681512025-ND 68151-2025 681512025 WM14672 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 HB |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.665" (16.90mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.157" (4.00mm) | Contact Length - Mating | 0.276" (7.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
