0559592830

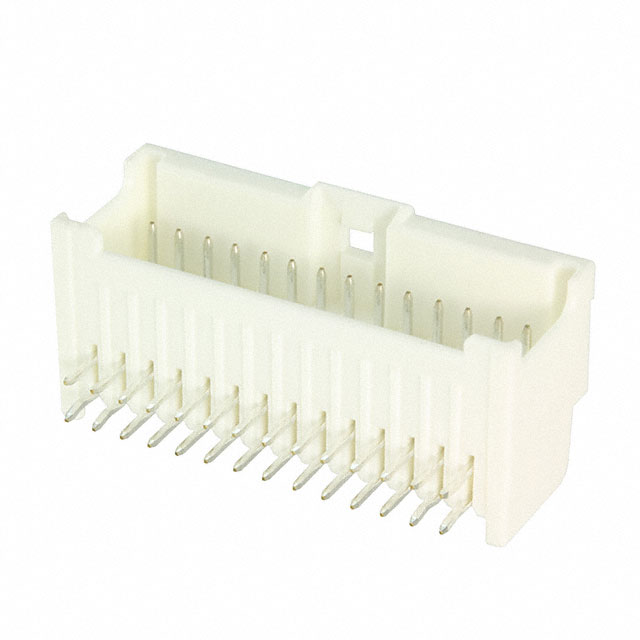

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0559592830 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0559592830 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0559592830 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.0 WTB DUAL CONN DIP PLG HSG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 300 pcs | 600 pcs | |
|---|---|---|---|---|---|
| $0.627 | $0.567 | $0.44 | $0.405 | ||
| 1200 pcs | 5100 pcs | 10200 pcs | |||
| $0.347 | $0.308 | $0.301 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0559592830 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2.0 WTB DUAL CONN DIP PLG HSG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67646 pcs | Data sheet | 559592830 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MicroClasp 55959 |
| Row Spacing - Mating | 0.197" (5.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 055959-2830 0559592830-ND 55959-2830 559592830 WM12311 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 28 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.461" (11.70mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 28 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Medical |
