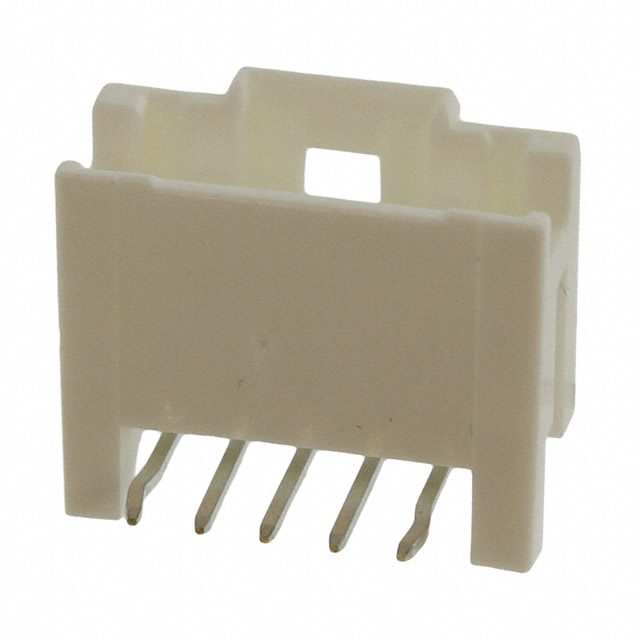

0559350530
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0559350530 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0559350530 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0559350530 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG 5POS R/A 2MM T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 900 pcs | |
|---|---|---|---|---|---|
| $0.226 | $0.212 | $0.163 | $0.127 | ||
| 1800 pcs | 5400 pcs | 10800 pcs | |||
| $0.113 | $0.103 | $0.095 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0559350530 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PLUG 5POS R/A 2MM T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 205551 pcs | Data sheet | 559350530 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MicroClasp 55935 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 055935-0530 55935-0530 559350530 WM7594 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.264" (6.70mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 5 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.144" (3.66mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Medical |
