0559320610

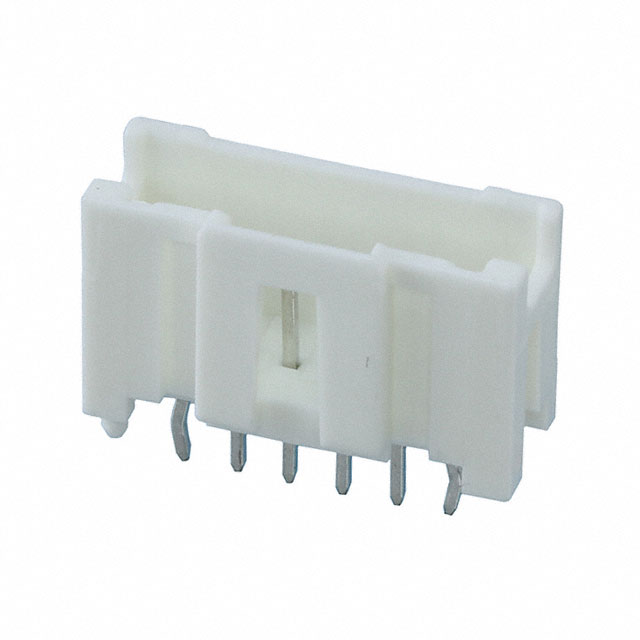

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0559320610 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0559320610 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0559320610 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.0 WTB PLG HSG ASSY STR 6CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 160 pcs | 640 pcs | |
|---|---|---|---|---|---|
| $0.186 | $0.175 | $0.134 | $0.117 | ||
| 1120 pcs | 5120 pcs | 10080 pcs | |||
| $0.096 | $0.085 | $0.079 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0559320610 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2.0 WTB PLG HSG ASSY STR 6CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 306582 pcs | Data sheet | 559320610 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MicroClasp 55932 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | 0.360" (9.15mm) |
| Other Names | 055932-0610 0559320610-ND 55932-0610 559320610 WM12288 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | 13.2mm | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.384" (9.75mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 6 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.144" (3.66mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Medical |
