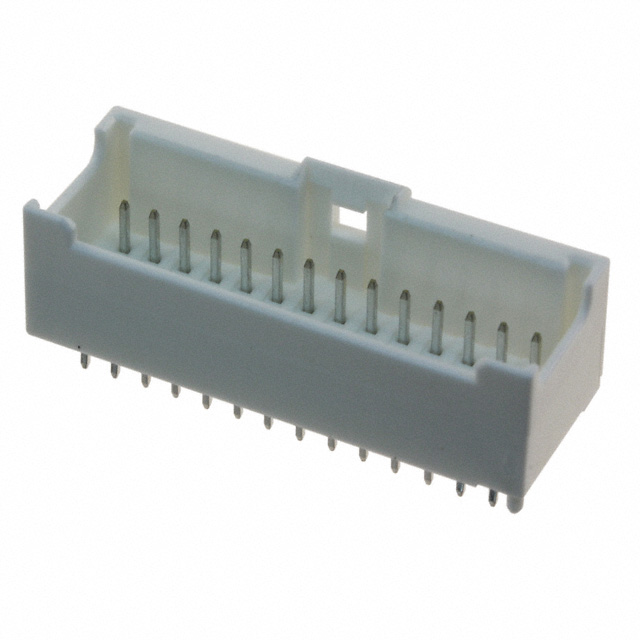

0559172810
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0559172810 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0559172810 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0559172810 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | DUAL CONN DIP PLG HSG ASSY 28CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 400 pcs | 800 pcs | |
|---|---|---|---|---|---|
| $0.45 | $0.397 | $0.311 | $0.272 | ||
| 1200 pcs | 5200 pcs | 10000 pcs | |||
| $0.249 | $0.218 | $0.207 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0559172810 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | DUAL CONN DIP PLG HSG ASSY 28CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103877 pcs | Data sheet | 0559172810 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MicroClasp 55917 |
| Row Spacing - Mating | 0.197" (5.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.366" (9.30mm) |
| Other Names | 055917-2810 55917-2810 559172810 WM3442 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 28 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 13.2mm | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.384" (9.75mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 28 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.150" (3.81mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Medical |
