0554512470

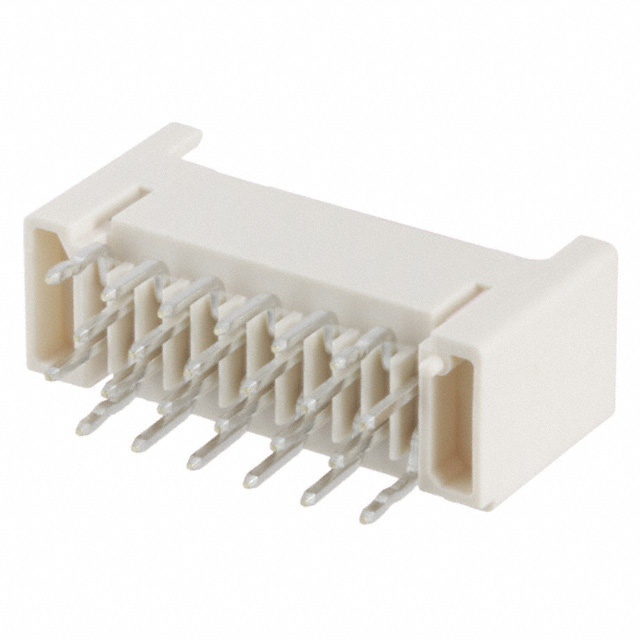

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0554512470 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0554512470 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0554512470 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINISTR 2-ROW WAFER ASSY 24CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 800 pcs | |
|---|---|---|---|---|---|
| $0.52 | $0.473 | $0.405 | $0.328 | ||
| 1600 pcs | 5600 pcs | 10400 pcs | |||
| $0.28 | $0.257 | $0.251 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0554512470 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINISTR 2-ROW WAFER ASSY 24CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83716 pcs | Data sheet | 0554512470 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini Mi II 55451 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tray | Overall Contact Length | 0.343" (8.70mm) |
| Other Names | 0554-51-2470 055451-2470 0554512470-ND 55451-2470 554512470 WM9347 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 9.8mm | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.386" (9.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 24 position 0.049" (1.25mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
