0547220804

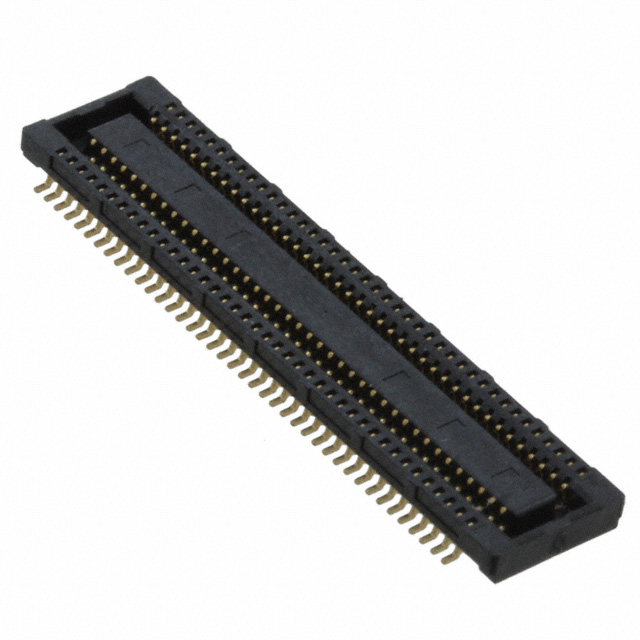

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0547220804 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0547220804 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0547220804 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT BTB 80POS DL VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $1.051 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0547220804 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT BTB 80POS DL VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33021 pcs | Data sheet | 0547220804 Drawing54722, 55560 Series Prod Spec |
| Category | Connectors, Interconnects | Series | SlimStack 54722 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 054722-0804 54722-0804 54722-0804-TR750 547220804 WM8786TR |
Number of Rows | 2 |
| Number of Positions | 80 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 1.5mm |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.045" (1.14mm) | Features | - |
| Detailed Description | 80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Center Strip Contacts |
