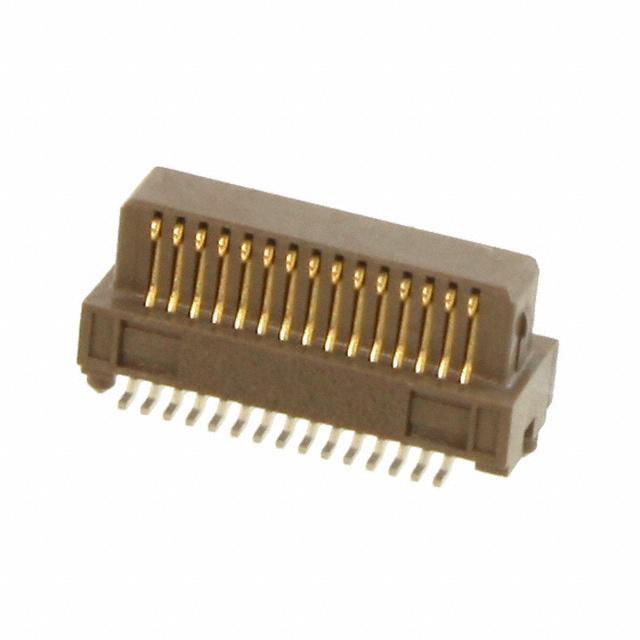

0545520302
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0545520302 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0545520302 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0545520302 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT BTB 30POS DL R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 375 pcs | 750 pcs | 1125 pcs | ||
|---|---|---|---|---|---|
| $0.463 | $0.414 | $0.365 | |||
| 1875 pcs | 2625 pcs | 9375 pcs | |||
| $0.353 | $0.341 | $0.317 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0545520302 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT BTB 30POS DL R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68682 pcs | Data sheet | 54552 Series DrawingProd Spec |
| Category | Connectors, Interconnects | Series | SlimStack 54552 |
| Pitch | 0.016" (0.40mm) | Packaging | Tape & Reel (TR) |
| Other Names | 054552-0302 54552-0302 54552-0302-TR375 545520302 WM8808TR |
Number of Rows | 2 |
| Number of Positions | 30 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 23 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.132" (3.35mm) | Features | Board Guide |
| Detailed Description | 30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector Type | Receptacle, Center Strip Contacts |
