0537800570
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0537800570 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0537800570 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0537800570 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

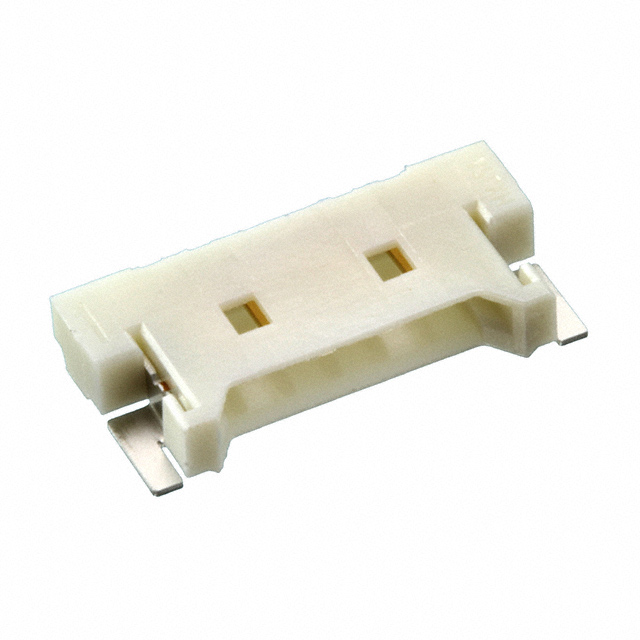

| Description | CONN HEADER 5POS 1.25MM R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | |
|---|---|---|---|---|---|
| $0.371 | $0.358 | $0.34 | $0.332 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0537800570 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 5POS 1.25MM R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66958 pcs | Data sheet | 51146-010 Prod Spec53780-0570 |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | PanelMate 53780 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 053780-0570 053780-0570-C 0537800570-C 53780-0570 53780-0570-C 537800570 537800570-C WM7602TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.073" (1.85mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.102" (2.60mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
