0537280219

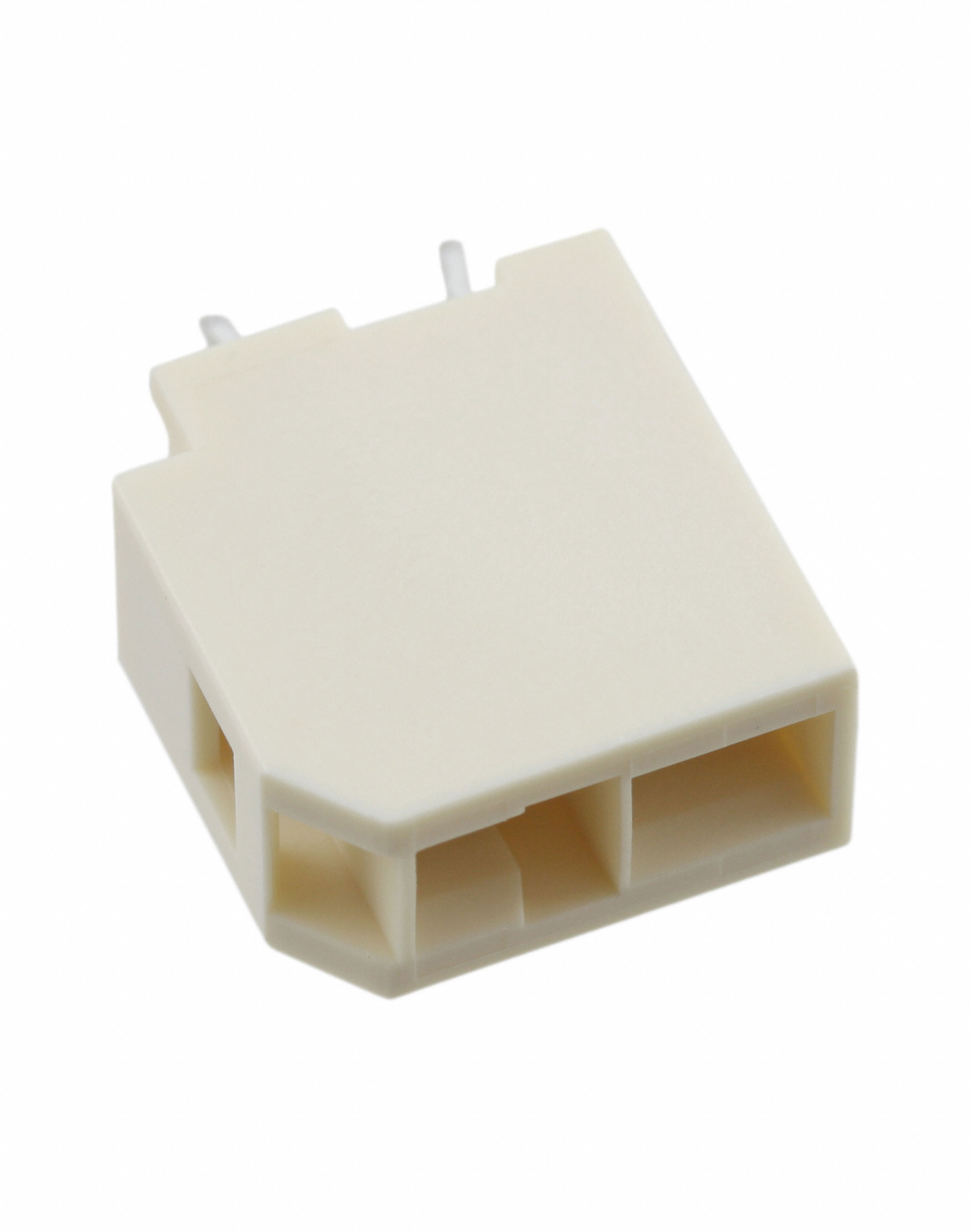

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0537280219 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0537280219 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0537280219 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | HEADER W/BOSS W/KINK 2CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.148 | $0.14 | $0.108 | $0.094 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.077 | $0.068 | $0.063 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0537280219 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | HEADER W/BOSS W/KINK 2CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 346684 pcs | Data sheet | 0537280219 |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 53728 |
| Row Spacing - Mating | 0.177" (4.50mm) | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 053728-0219 53728-0219 537280219 WM3426 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.630" (16.00mm) | Insulation Color | White |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 2 position |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | 0.348" (8.85mm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
