0536250974

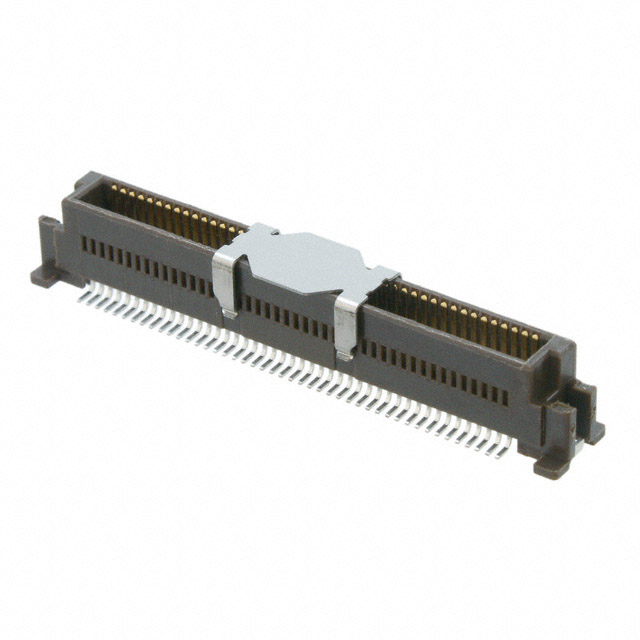

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0536250974 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0536250974 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0536250974 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN BTB PLUG 90POS DL VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | 1250 pcs | 1750 pcs |
|---|---|---|---|---|---|
| $1.888 | $1.777 | $1.666 | $1.555 | $1.522 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0536250974 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN BTB PLUG 90POS DL VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21540 pcs | Data sheet | 53625 Series DrawingProd Spec |
| Category | Connectors, Interconnects | Series | SlimStack 53625 |
| Pitch | 0.025" (0.64mm) | Packaging | Tape & Reel (TR) |
| Other Names | 053625-0974 53625-0974 53625-0974-TR250 536250974 WM8894TR |
Number of Rows | 2 |
| Number of Positions | 90 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 7mm, 13mm |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.236" (6.00mm) | Features | Board Guide, Solder Retention |
| Detailed Description | 90 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Connector Type | Plug, Outer Shroud Contacts |
